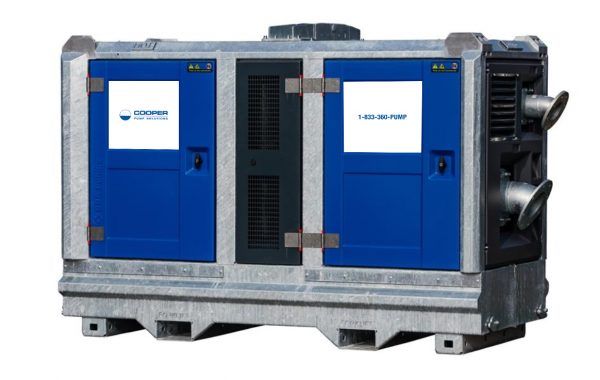

BA80H 3” High Head
Description
With a duty point of 100m3/h @ 100mwc, the compact 3’ high pressure pump is easy to transport from one location to another. The pumps are dry self-priming, diesel-driven and a sound attenuated canopy, allowing it to be used in many applications. The 4-cylinder diesel engine adheres to the highest emission standards.
Specifications
Type | BA80H D290 |
---|---|
Max. flow | 440US GPM |
Max. pressure | 349ft. / 151PSI |
Connections | Discharge 3" – Suction 6" |
Solids handling | 1" |
Impeller type | Closed impeller |
Priming system | BBA MP50 |
Engine | Hatz 4H50TIC |
Emission standard | Tier 4 final |
Canopy | M10-23X |
Sound level | Approx. 69 dB(A) at 33 ft. |
Dry weight | 3520lbs |
Applications
Tank Cleaning, Fire fighting, Construction, Jetting wellpoint filters, Underwater excavation work
