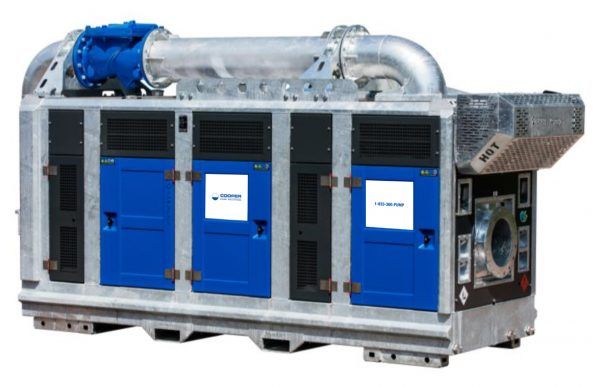

BA300E 12” Diesel Driven
Description
Specifically used for projects that need long discharge pipes and for solving issues with discharge pressure, the BA300E D388 pump has a maximum capacity of 1450 m3/h and up to 48 mwc.
Specifications
| Type | BA300E D388 |
|---|---|
| Max. flow | 6380US GPM |
| Max. pressure | 159ft./ 69 PSI |
| Discharge x suction | 12" x 14" (DN300 x DN350) |
| Solids handling | 4.7" x 4.1" |
| Impeller type | Open impeller |
| Priming system | BBA MP100 |
| Engine | Volvo Penta TAD873VE |
| Emission standard | Tier 4 final |
| Canopy | M14-40 |
| Sound level | 73dB(A) at 33 ft. |
| Dry weight | 11,660 lbs. |
