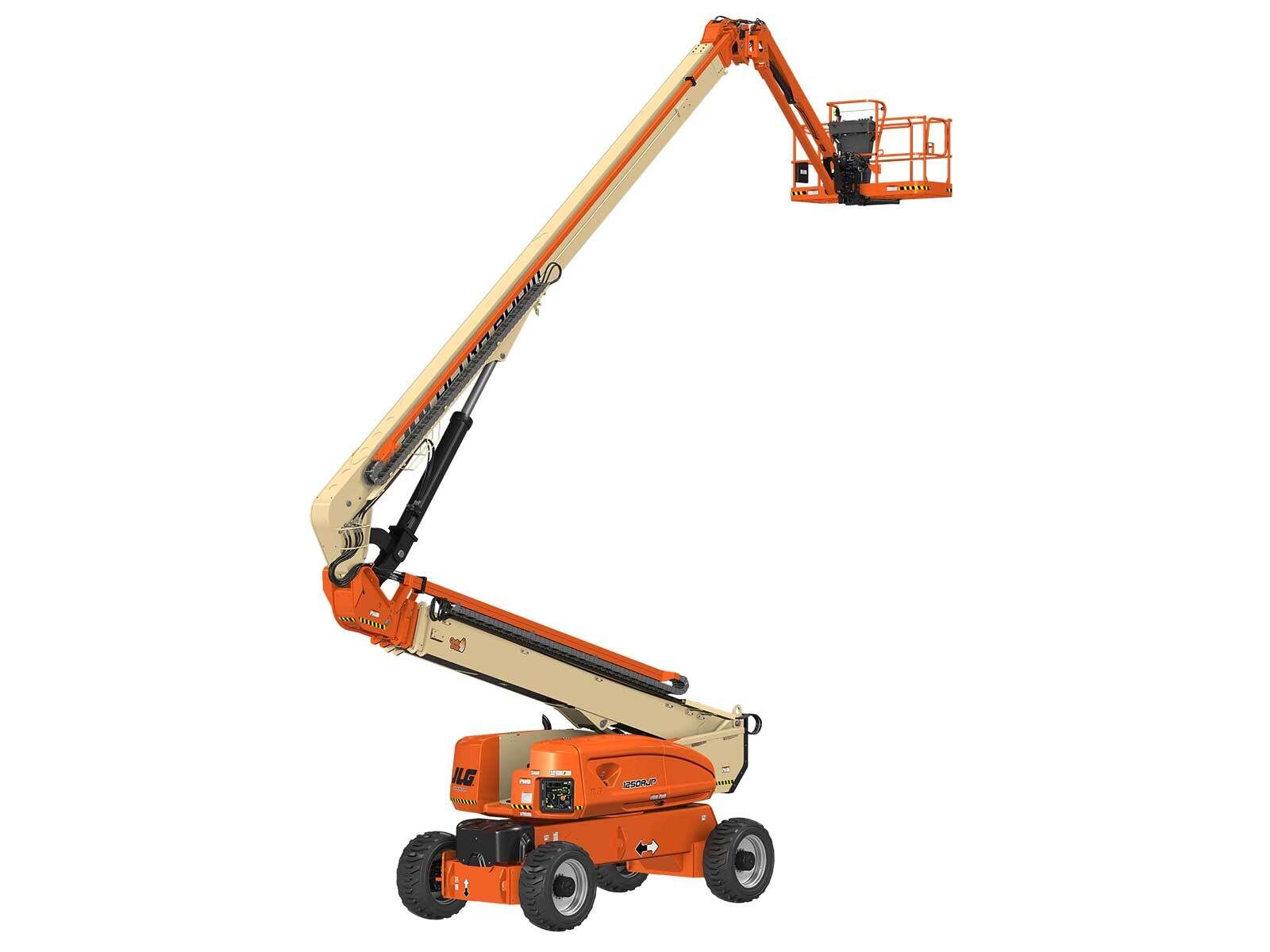

126′ Articulating Boom
Capacity: 507 lbs
Manufacturer
JLG
Description
126’ articulating booms provide the ultimate in versatility with up, out and over positioning capabilities for hard-to-access work areas. Get the reach and reliable performance you need to get the job done. These units feature an extension boom, self-leveling platform, hydraulic outriggers, variable speed control, 359 degree non-continuous turntable rotation, and non-marking outrigger footpads.
Specifications
| Make | JLG |
|---|---|
| Model | 1250AJP |
| Weight | 46,297 lbs |
| Stowed Height | - |
| Platform Dimensions (W x L) | 96" x 36" |
| Lift Capacity | 507 lbs |
| Raised Platform Height | 126' |
| Horizontal Reach | 63'2" |
| Power | Diesel |
Applications
Structural steel erectors, wood framers, concrete formers, roof work, fire protection or waterproofing
